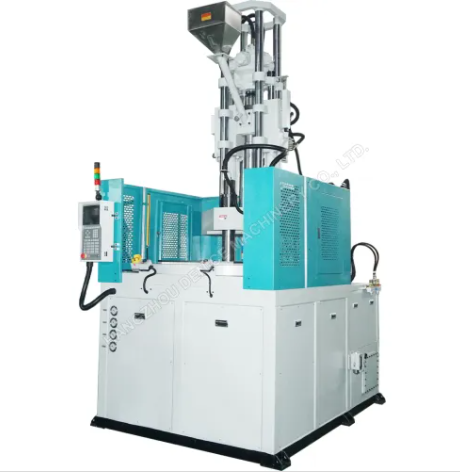

bakelite injection molding machine DV-1600.2R
Bakelite injection moulding machines are specialized machines used for the mass production of Bakelite, a type of plastic that was popular in the early 20th century. Bakelite is a thermosetting plastic that is made by combining phenol and formaldehyde under heat and pressure.
The Bakelite injection moulding machine works by melting the Bakelite pellets in a heated barrel and injecting the molten plastic into a mould under pressure. The mould is then cooled to allow the plastic to solidify and take on the desired shape. The machine can repeat this process quickly and efficiently to produce large quantities of identical Bakelite parts.
Product Description
·Clamping force : 25Ton-250Ton
·Injection weight : 45-549g
·Vertical clamping and vertical injection design
·Suitable for insert molding process and multi-purpose injection molding process
·2 stations or 3 stations rotary table design,effective to increase production capacity and machine safety factor
Specification
|
Specification
|
|
Model
|
Unit
|
DV-1000.2R
|
|
( Injection Unit )
|
Screw diameter
|
mm
|
Ф36
|
Ф42
|
Ф46
|
Ф48
|
|
|
Maximum injection pressure
|
Kg/cm2
|
2570
|
1888
|
1574
|
1446
|
|
|
Theoretical shot volume
|
cm3
|
183
|
249
|
298
|
325
|
|
|
Maximum shot weight（PS）
|
g/Oz
|
162（5.7）
|
221（7.8）
|
266（9.4）
|
289（10.2）
|
|
|
Injection rate
|
cm3/sec
|
101
|
137
|
165
|
179
|
|
( Clamping Unit )
|
Clamping force
|
ton
|
100
|
|
|
Rotary Table Diameter
|
mm
|
1200
|
|
|
tie bar distance
|
mm
|
-
|
|
|
Minimum mold thickness
|
mm
|
200/300（Can be customized according to customer requirements）
|
|
|
Opening stroke
|
mm
|
270
|
|
|
Open daylight
|
mm
|
470/570
|
|
|
Ejector force
|
T
|
2.7（Can be customized according to customer requirements）
|
|
|
Ejector stroke
|
mm
|
70
|
|
( Others )
|
Pump motor power
|
Kw
|
15
|
|
|
Hydraulic system pressure
|
Kg/cm2
|
140
|
|
|
Barrel heating power
|
Kw
|
7
|
|
|
Total wattage
|
Kw
|
22
|
|
|
Oil tank capacity
|
L
|
550
|
|
|
Machine weight (approx.)
|
T
|
4.8
|
|
|
Machine dimensions(approx.)
|
m
|
2.6×2.0× 3.2
|
|
Specification
|
|
Model
|
Unit
|
DV-1200.2R
|
|
( Injection Unit )
|
Screw diameter
|
mm
|
Ф46
|
Ф52
|
|
|
Maximum injection pressure
|
Kg/cm2
|
2193
|
1716
|
|
|
Theoretical shot volume
|
cm3
|
365
|
467
|
|
|
Maximum shot weight（PS）
|
g/Oz
|
325（11.4）
|
415（14.6）
|
|
|
Injection rate
|
cm3/sec
|
123
|
157
|
|
( Clamping Unit )
|
Clamping force
|
ton
|
120
|
|
|
Rotary Table Diameter
|
mm
|
1200
|
|
|
tie bar distance
|
mm
|
-
|
|
|
Minimum mold thickness
|
mm
|
200/300（Can be customized according to customer requirements）
|
|
|
Opening stroke
|
mm
|
300
|
|
|
Open daylight
|
mm
|
500/600（As required）
|
|
|
Ejector force
|
T
|
4.0（Can be customized according to customer requirements）
|
|
|
Ejector stroke
|
mm
|
75
|
|
( Others )
|
Pump motor power
|
Kw
|
15
|
|
|
Hydraulic system pressure
|
Kg/cm2
|
140
|
|
|
Barrel heating power
|
Kw
|
7
|
|
|
Total wattage
|
Kw
|
22
|
|
|
Oil tank capacity
|
L
|
650
|
|
|
Machine weight (approx.)
|
T
|
6.9
|
|
|
Machine dimensions(approx.)
|
m
|
2.6×1.8× 3.9
|
|
Specification
|
|
Model
|
Unit
|
DV-1600.2R
|
|
( Injection Unit )
|
Screw diameter
|
mm
|
Ф50
|
Ф55
|
|
|
Maximum injection pressure
|
Kg/cm2
|
1856
|
1534
|
|
|
Theoretical shot volume
|
cm3
|
471
|
570
|
|
|
Maximum shot weight（PS）
|
g/Oz
|
420（14.8）
|
509（17.9）
|
|
|
Injection rate
|
cm3/sec
|
157
|
190
|
|
( Clamping Unit )
|
Clamping force
|
ton
|
167
|
|
|
Rotary Table Diameter
|
mm
|
1400
|
|
|
tie bar distance
|
mm
|
-
|
|
|
Minimum mold thickness
|
mm
|
250/350（Can be customized according to customer requirements）
|
|
|
Opening stroke
|
mm
|
300
|
|
|
Open daylight
|
mm
|
550/650（As required）
|
|
|
Ejector force
|
T
|
4.0（Can be customized according to customer requirements）
|
|
|
Ejector stroke
|
mm
|
125
|
|
( Others )
|
Pump motor power
|
Kw
|
18.5
|
|
|
Hydraulic system pressure
|
Kg/cm2
|
140
|
|
|
Barrel heating power
|
Kw
|
10.8
|
|
|
Total wattage
|
Kw
|
29.3
|
|
|
Oil tank capacity
|
L
|
800
|
|
|
Machine weight (approx.)
|
T
|
7.5
|
|
|
Machine dimensions(approx.)
|
m
|
3.6×1.8× 3.9
|
Advantages
Hangzhou DENICE Machinery Co., Ltd. offers several advantages as a manufacturer and supplier of bakelite plastic injection molding machines:
High-quality and high-precision machines: Our machines are designed to meet the specific requirements of bakelite injection molding and provide precise and consistent results, ensuring that your products meet the highest quality standards.
Wide range of clamping forces and injection volumes: We offer a wide range of clamping forces, from 15 tons to 650 tons, and injection volumes from 35 grams to 8000 grams, providing flexibility and efficiency in your production process.
Different series of injection molding machines: Our bakelite injection molding machines come in different series, including standard series, single slide plate series, double slide plate series, and rotary table series injection molding machines, giving you a variety of options to choose from.
Energy-efficient machines: Our machines are designed to be energy-efficient, reducing your operating costs and helping you to be more environmentally friendly.
Compact and vertical design: Our machines take up less space and can be easily integrated into your production line, providing maximum flexibility and efficiency.
High-quality components and advanced technology: We use high-quality components and advanced technology to ensure that our machines provide long-lasting performance and reliable results.
Comprehensive service and support: We offer comprehensive service and support to our customers, including installation, training, and maintenance services, ensuring that your machine is running at peak performance at all times.
We look forward to working with you!
As a leading manufacturer and supplier of vertical injection molding machines in China, Hangzhou DENICE Machinery Co., Ltd. specializes in providing high-quality and high-precision bakelite plastic injection molding machines. Bakelite, also known as phenolic resin, is a thermosetting plastic that is widely used in various industries, including automotive, electrical, and consumer goods.
Our bakelite plastic injection molding machines are designed to meet the specific requirements of bakelite injection molding. We offer a wide range of clamping forces, from 15 tons to 650 tons, and injection volumes from 35 grams to 8000 grams. Our bakelite injection molding machines come in different series, including standard series, single slide plate series, double slide plate series, and rotary table series injection molding machines.
As a bakelite injection molding machine manufacturer and supplier, we understand the importance of precision, efficiency, and reliability in the injection molding process. Our machines are designed to provide precise and consistent results, ensuring that your products meet the highest quality standards. Our machines are also energy-efficient, reducing your operating costs and helping you to be more environmentally friendly.
At DENICE Machinery, we provide bakelite injection molding machines for sale that meet the needs of different industries and applications. Whether you are looking for a small vertical injection molding machine for bakelite or a large-capacity machine for high-volume production, we have the right solution for you.
Our vertical injection molding machine for bakelite is designed to provide maximum flexibility and efficiency. With a compact footprint and vertical design, our machines take up less space and can be easily integrated into your production line. We use high-quality components and advanced technology to ensure that our machines provide long-lasting performance and reliable results.
In summary, Hangzhou DENICE Machinery Co., Ltd. is a leading manufacturer and supplier of bakelite plastic injection molding machines. We offer a wide range of high-quality and high-precision machines that are designed to meet the specific requirements of bakelite injection molding.Whether you are looking for a bakelite injection molding machine manufacturer or supplier, or are in need of a bakelite injection molding machine for sale, we have the right solution for you. Send email to us now for more detailed product information!
